| Actuator Type |
Control Pressure Pst (bar) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | |
| AGDL - 004 AGDS - 004 |
8.5 | 10.6 | 12.8 | 14.9 | 17.0 | 19.1 | 21.3 | 23.4 | 25.5 | 29.8 | 34.0 |
| Actuator Type |
No. of Springs |
Md F (Nm) | Control Pressure Pst (bar) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | ||||||||||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||
| AGS 004 | 4 | 3.29 | 5.00 | 4 | 5 | 6 | 7 | ||||||||||||||||
| 5 | 4.11 | 6.25 | 2 | 7 | 4 | 7 | 7 | 9 | |||||||||||||||
| 6 | 4.94 | 7.50 | 3 | 6 | 5 | 8 | 7 | 10 | |||||||||||||||
| 7 | 5.76 | 8.75 | 4 | 7 | 6 | 9 | 8 | 11 | |||||||||||||||
| 8 | 6.58 | 10.00 | 8 | 8 | 7 | 10 | 9 | 13 | |||||||||||||||
| 9 | 7.40 | 11.25 | 6 | 10 | 8 | 12 | 10 | 14 | |||||||||||||||
| 10 | 8.23 | 12.50 | 7 | 11 | 9 | 13 | 11 | 15 | |||||||||||||||
| 11 | 9.05 | 13.75 | 8 | 12 | 10 | 14 | 12 | 16 | |||||||||||||||
| 12 | 9.87 | 15.00 | 8 | 14 | 11 | 16 | 15 | 20 | |||||||||||||||
Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc.
to DIN/ISO 8573-1 Class 4
| Actuator Type | AGDL | AGDS | AGS |
|---|---|---|---|
| Weight (kg) | 1.1 | 1.0 | 1.3 |
| Volume (I) Double-stroke | 0.20 | 0.15 | 0.10 |
| Standard | -35°C to +80°C |
| High-temp (HT) | -15°C to +140°C |
| Low-temp (TT) | -50°C to +70°C |
| AGDL | AGDS | AGS | |
|---|---|---|---|
| 0.2 | 0.2 | 0 - 90° | 90° - 0 |
| 0.40 | 0.30 | ||
- HousingAl-Alloy, Anodised, Outside PP-Coated
- CapsAl-Alloy, PP-Coated
- PistonAl-Alloy
- PinionAl-Alloy, Hard Anodized
- Namur ShaftSS304
- SealsNBR (Perbunan)
- BearingPTFE+25% Corbon Filled
- ScrewsStainless Steel 1.4301
- Other Housing Coatings
- Pinion : Stainless Steel AISI 304 or 316
- 180° Actuator : Rotation 180° to 120° Adjustable
- 3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°
*Quoted switch times are guidelines for a double-stroke
at 5 bar control pressure and at 50% rated loading.
With high valve actuating speeds, potentially dangerous
large braking forces can arise in the actuator end positions.
Tip : Throttle the exhaust air or select a larger actuator.
Single Action actuators with 12 springs.
AGDL - 004 / 090 - V11 - H (see assembly variants)
AGDS - 004 / 090 - V11 - H (see assembly variants)
AGS - 004 / 090 - 06* - V11 - H (see assembly variants)
*The number of springs (4 up to 12 pcs.) must be matched
to the control pressure beforehand

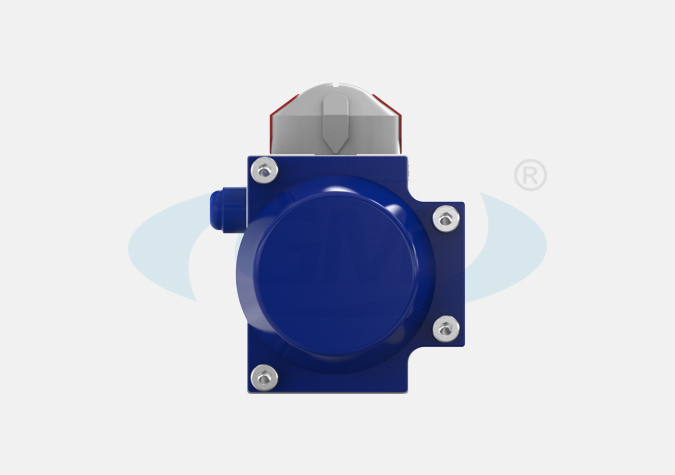

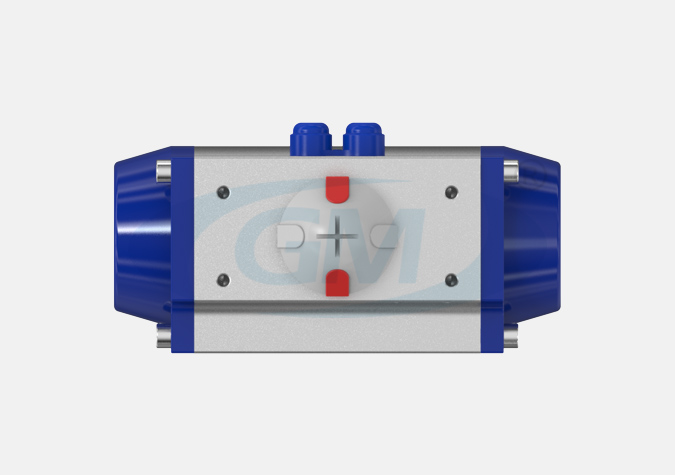

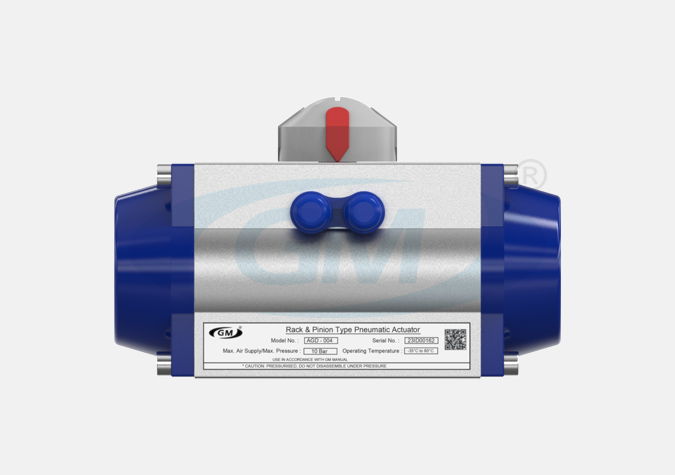

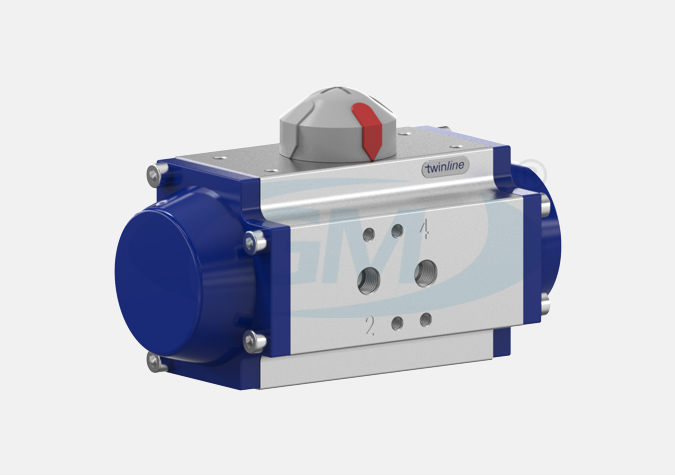

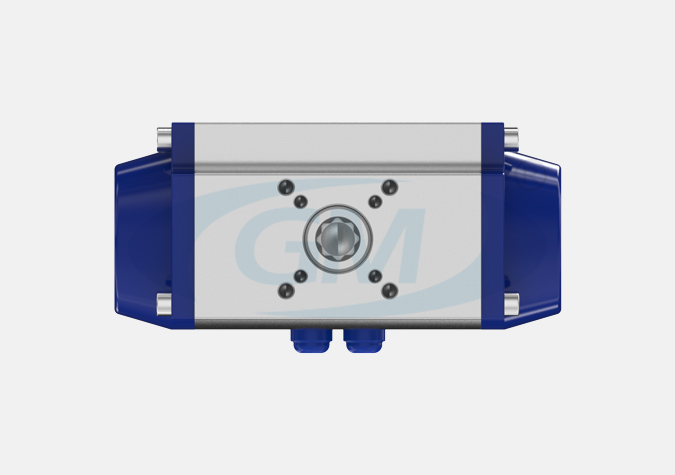

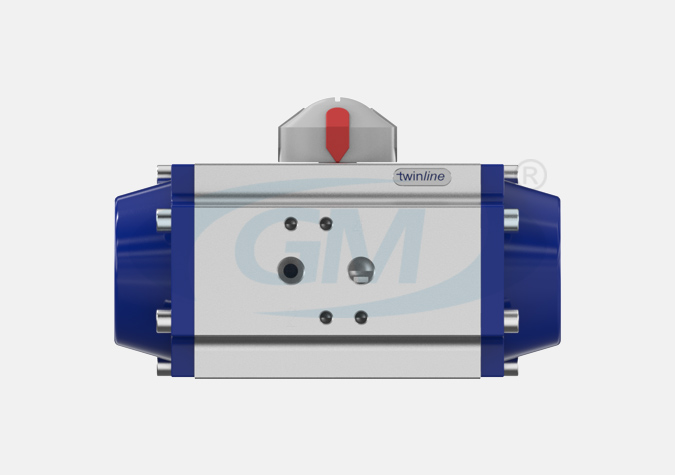

AGDL = Double acting with spring end caps
AGS = Single acting with spring

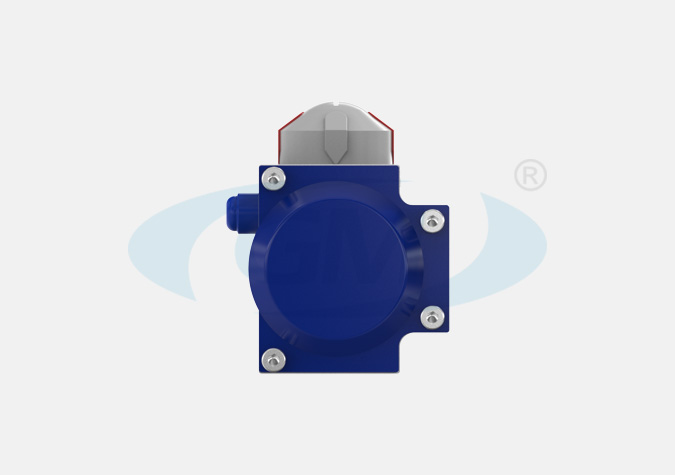

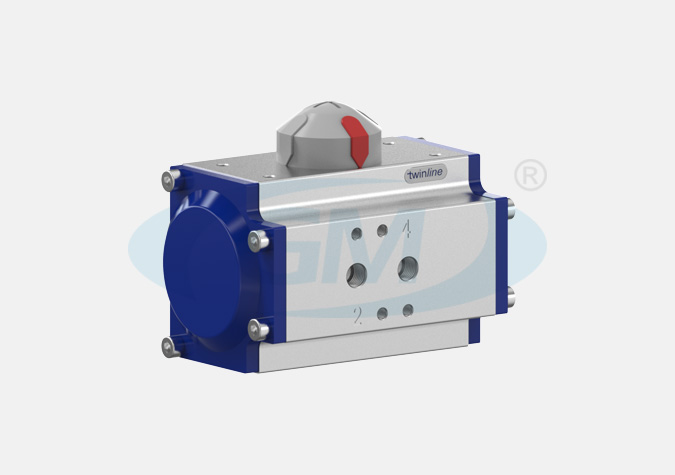

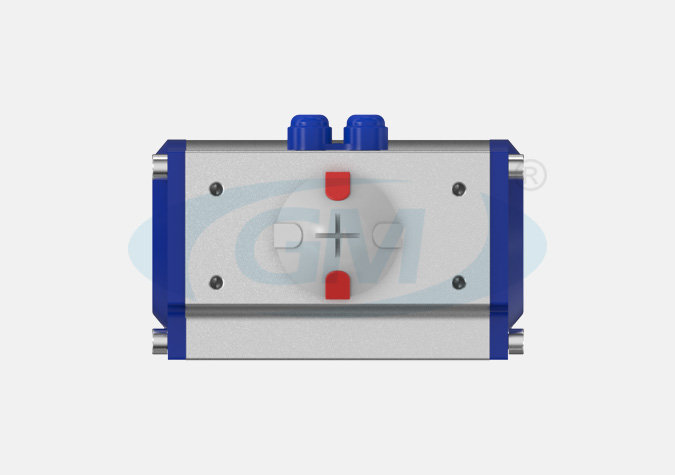

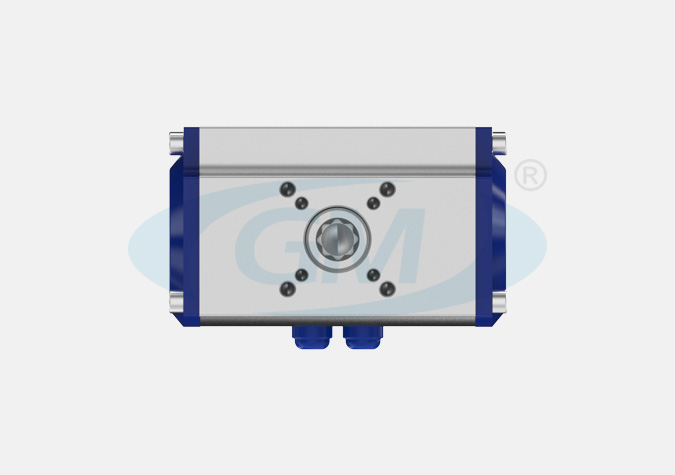

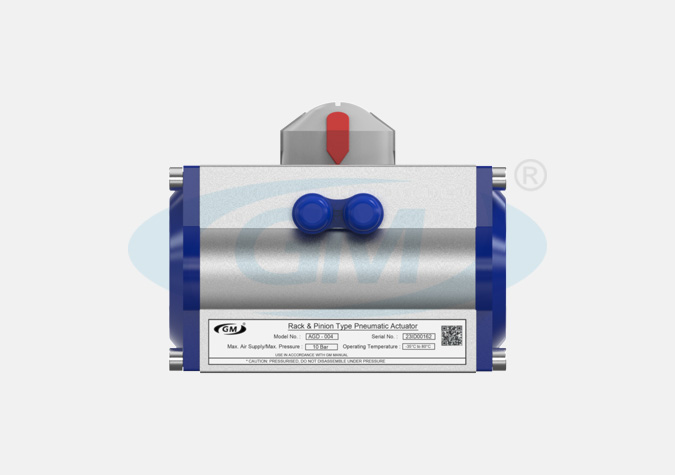

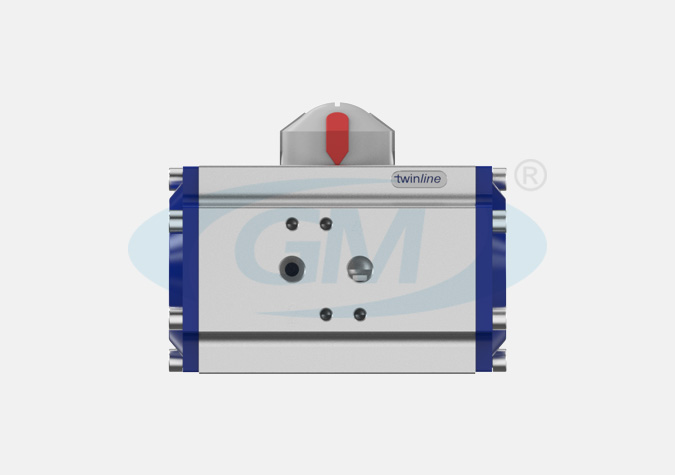

Option : AGDS = Double acting with short end caps
