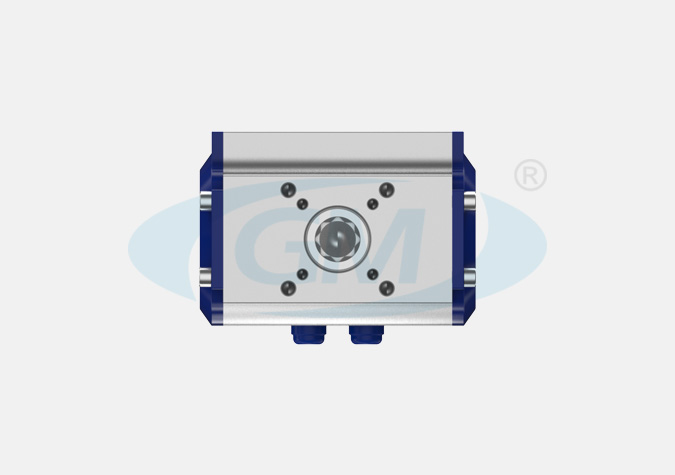

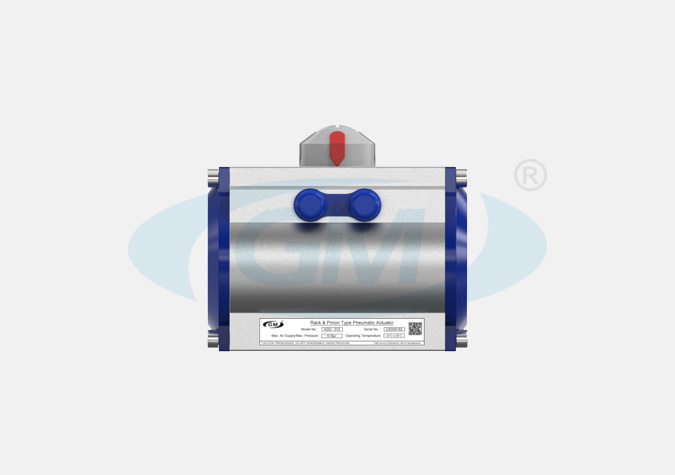

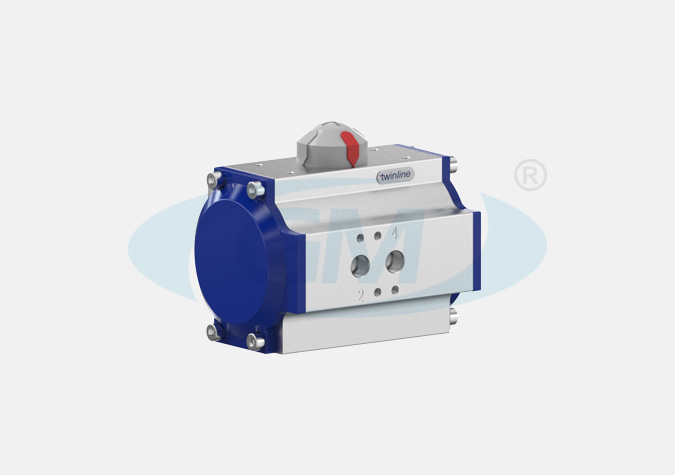

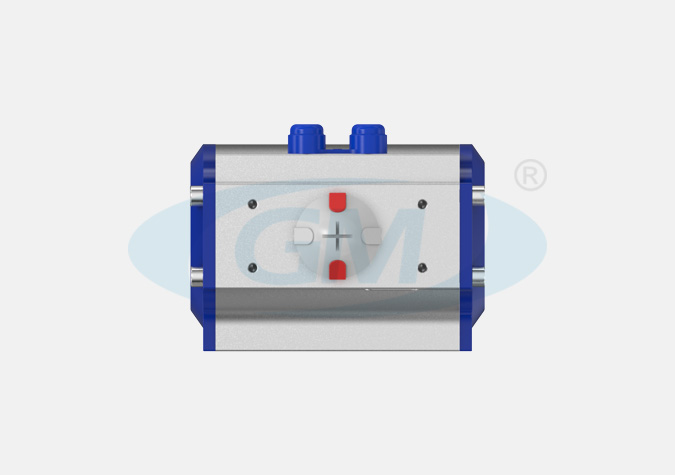

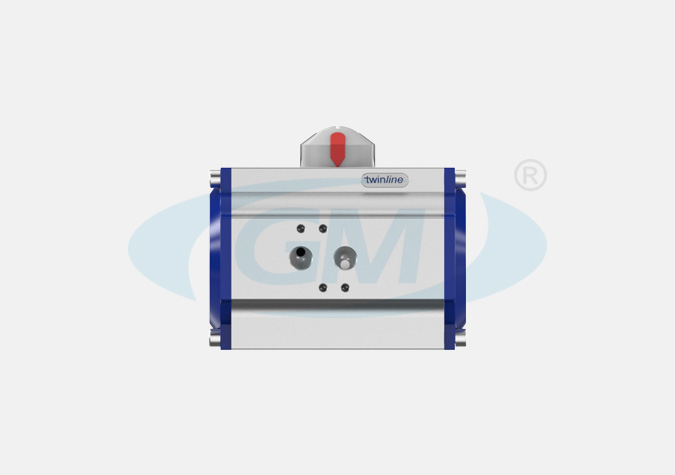

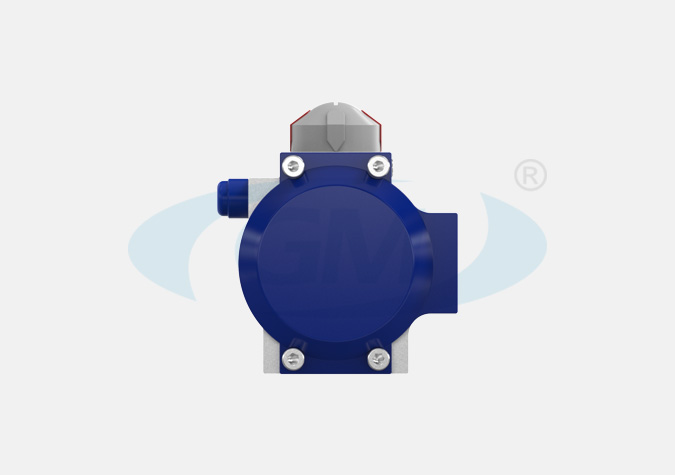

AGDL-010

Technical Drawing
End Position Adjustment
Torque-Table Double-Acting Actuator (Nm)
Actuator
Type		 Control Pressure Pst (bar)
2 2.5 3 3.5 4 4.5 5 5.5 6 7 8
AGDL - 010
AGDS - 010		 21.2 26.5 31.8 37.1 42.4 47.7 53.0 58.3 63.6 74.2 84.8

Torque-Table Single-Acting Actuator (Nm)
Actuator
Type		 No. of
Springs		 Md F (Nm) Control Pressure Pst (bar)
2 2.5 3 3.5 4 4.5 5 5.5 6 7
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
AGS 010 4 8.90 12.30 9 12 14 18
5 11.13 15.38 6 10 11 25 16 21
6 13.35 18.45 8 13 13 18 19 24
7 15.58 21.53 10 16 16 22 21 27
8 17.80 24.60 13 19 18 25 23 30
9 20.03 27.68 15 22 20 28 25 33
10 22.25 30.75 17 25 22 31 28 36
11 24.48 33.83 19 29 24 34 30 39
12 26.70 36.90 21 32 27 37 37 48
Control Pressure

Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc. to DIN/ISO 8573-1 Class 4

Weight, Air Consumption
Actuator Type AGDS AGS AGDL
Weight (kg) 2.00 1.70 2.30
Volume (I) Double-stroke 0.50 0.40 0.30
Ambient Temperature
Standard -35°C to +80°C
High-temp (HT) -15°C to +140°C
Low-temp (TT) -50°C to +70°C
Switch Time (Sec*)
AGDL AGDS AGS
0.6 0.5 0 - 90° 90° - 0
0.90 0.70

Materials
  • HousingAl-Alloy, Anodised, Outside PP-Coated
  • CapsAl-Alloy, PP-Coated
  • PistonAl-Alloy
  • PinionAl-Alloy, Hard Anodized
  • Namur ShaftSS304
  • SealsNBR (Perbunan)
  • BearingPTFE+25% Corbon Filled
  • ScrewsStainless Steel 1.4301
Optional Extras
  • Other Housing Coatings
  • Pinion : Stainless Steel AISI 304 or 316
  • 180° Actuator : Rotation 180° to 120° Adjustable
  • 3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°

* Quoted switch times are guidelines for a double-stroke at 5 bar control pressure and at 50% rated loading. With high valve actuating speeds potentially dangerous large braking forces can arise in the actuator end positions
Tip : Throttle the exhaust air or select a larger actuator. Single action actuators with 12 springs.

AGDL - 010 / 090 - V17 - H (see assembly variants)
AGDS - 010 / 090 - V17 - H (see assembly variants)
AGDS - 010 / 090 - 06* - V17 - H (see assembly variants)
* The number of springs (4 up to 12 pcs.) must be matched to the control pressure beforehand.
AGDL = Double acting with spring end caps
AGS = Single acting with spring
Option : AGDS = Double acting with short end caps
