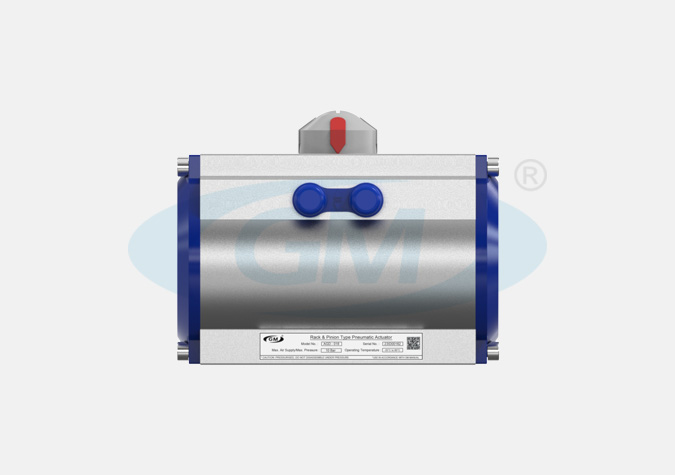

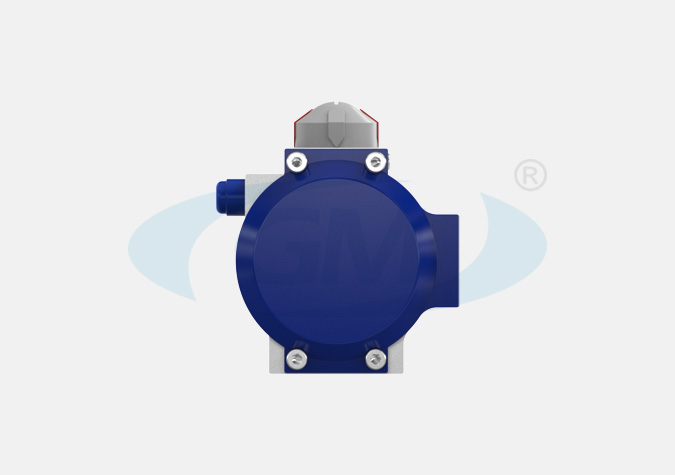

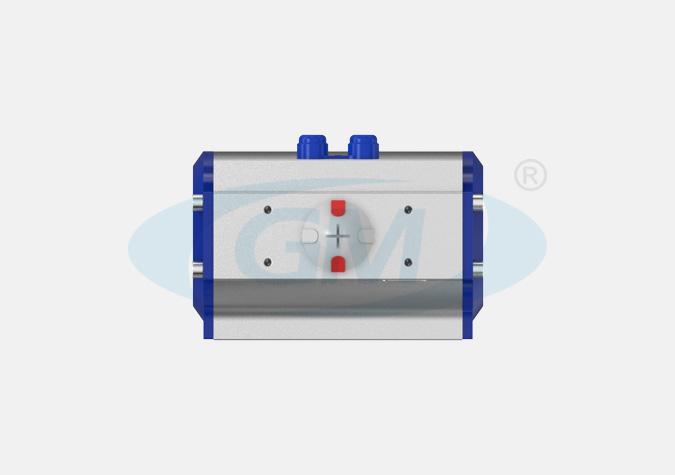

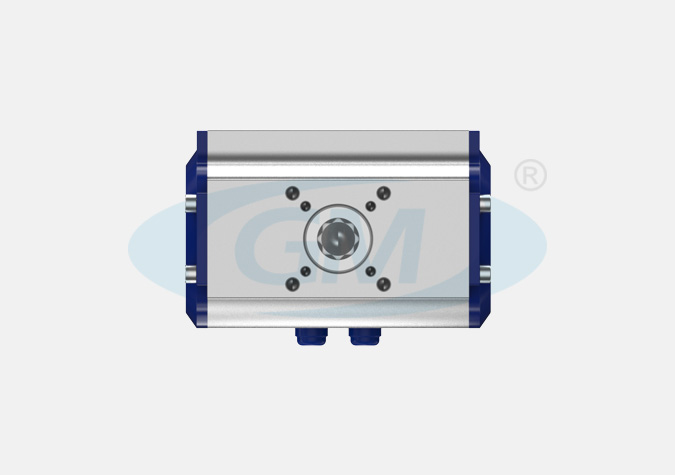

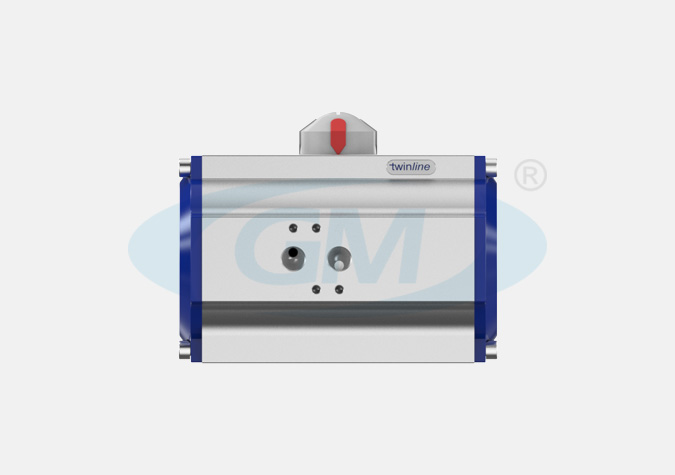

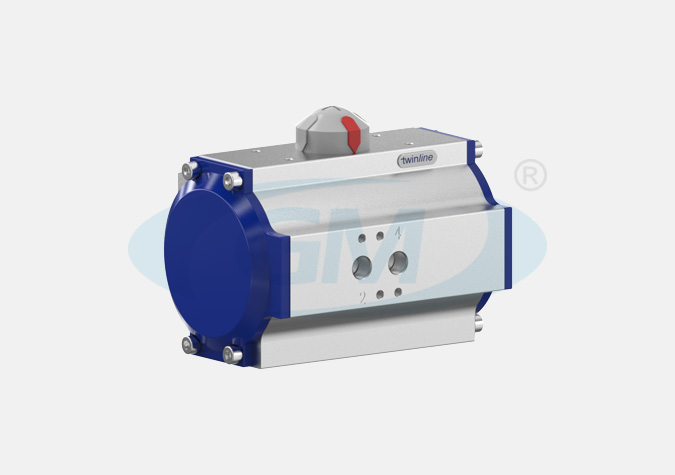

AGDL-018

Technical Drawing
End Position Adjustment
Torque-Table Double-Acting Actuator (Nm)
Actuator
Type		 Control Pressure Pst (bar)
2 2.5 3 3.5 4 4.5 5 5.5 6 7 8
AGDL - 018
AGDS - 018		 36.3 45.4 54.5 63.5 72.6 81.7 90.8 99.8 108.9 127.1 145.2

Torque-Table Single-Acting Actuator (Nm)
Actuator
Type		 No. of
Springs		 Md F (Nm) Control Pressure Pst (bar)
2 2.5 3 3.5 4 4.5 5 5.5 6 7
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
AGS 018 4 14.80 21.50 15 22 24 31
5 18.50 26.88 9 18 19 27 28 36
6 22.20 32.25 13 23 22 32 31 41
7 25.90 37.63 17 29 26 38 35 47
8 29.60 43.00 21 34 30 43 39 52
9 33.30 48.38 24 39 33 48 42 57
10 37.00 53.75 28 45 37 54 46 63
11 40.70 59.13 32 50 41 59 50 68
12 44.40 64.50 35 55 44 65 63 83
Control Pressure

Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc. to DIN/ISO 8573-1 Class 4

Weight, Air Consumption
Actuator Type AGDL AGDS AGS
Weight (kg) 2.60 2.30 3.00
Volume (I) Double-stroke 0.80 0.65 0.50
Ambient Temperature
Standard -35°C to +80°C
High-temp (HT) -15°C to +140°C
Low-temp (TT) -50°C to +70°C
Switch Time (Sec*)
AGDL AGDS AGS
0.7 0.6 0 - 90° 90° - 0
1.0 0.80

Materials
  • HousingAl-Alloy, Anodised, Outside PP-Coated
  • CapsAl-Alloy, PP-Coated
  • PistonAl-Alloy
  • PinionAl-Alloy, Hard Anodized
  • Namur ShaftSS304
  • SealsNBR (Perbunan)
  • BearingPTFE+25% Corbon Filled
  • ScrewsStainless Steel 1.4301
Optional Extras
  • Other Housing Coatings
  • Pinion : Stainless Steel AISI 304 or 316
  • 180° Actuator : Rotation 180° to 120° Adjustable
  • 3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°

*Quoted switch times are guidelines for a double-stroke at 5 bar control pressure and at 50% rated loading. With high valve actuating speeds potentially dangerous large braking forces can arise in the actuator end positions.
Tip : Throttle the exhaust air or select a larger actuator. Single action actuators with 12 springs.

AGDL - 018 / 090 - V17 - H (see assembly variants)
AGDS - 018 / 090 - V17 - H (see assembly variants)
AGS - 018 / 090 - 06* - V17 - H (see assembly variants)
*The number of springs (4 up to 12 pcs.) must be matched to the control pressure beforehand
AGDL = Double acting with spring end caps
AGS = Single acting with spring
Option : AGDS = Double acting with short end caps
