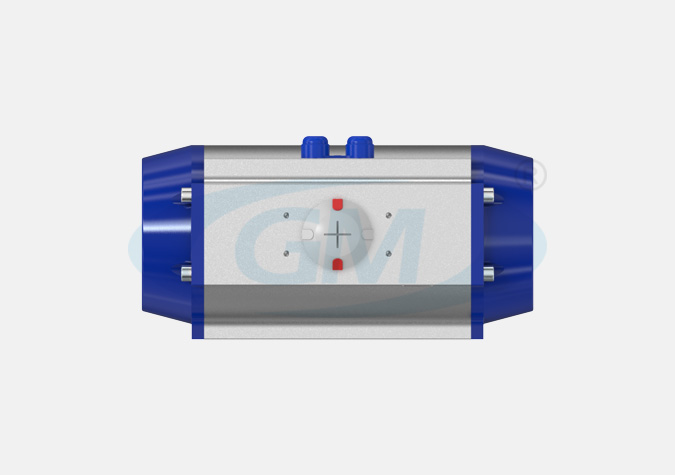

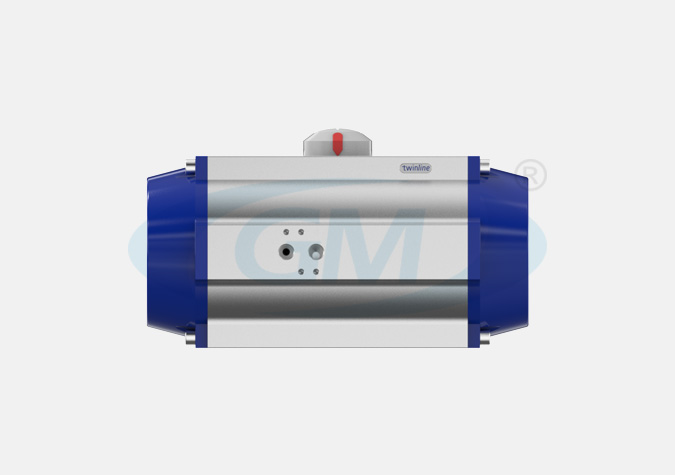

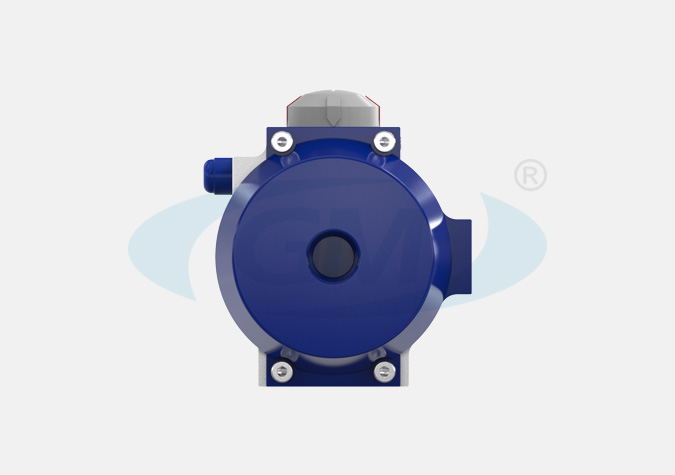

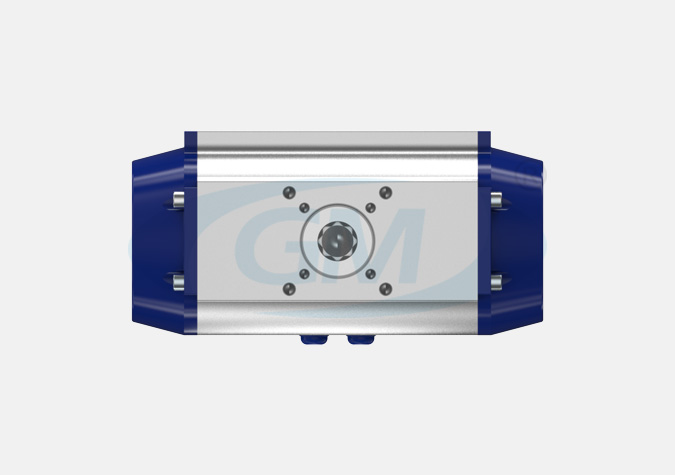

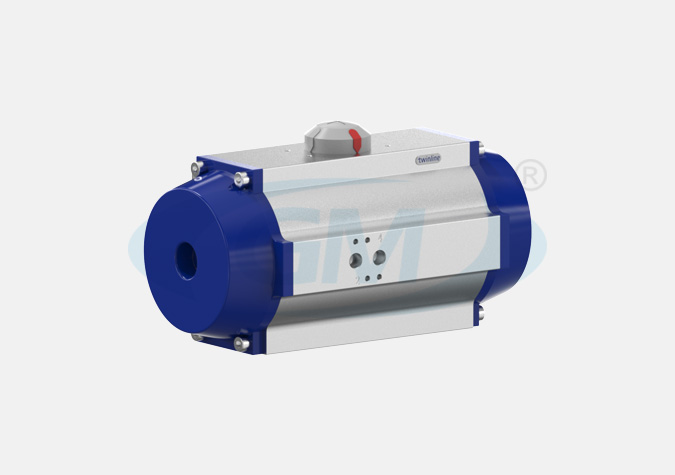

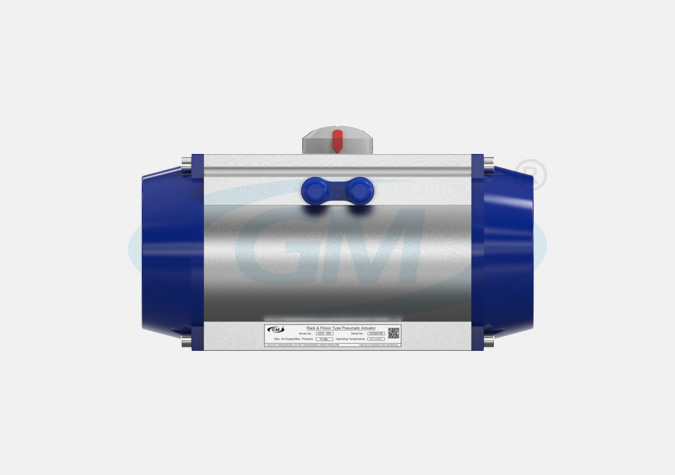

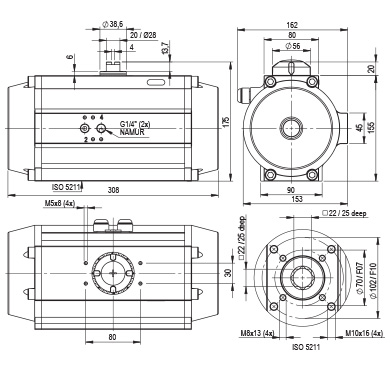

Technical Drawing

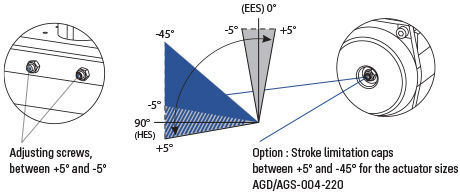

End Position Adjustment

Data Sheet (AGDL-AGDS / AGS-055)
Technical Data
Ordering Code

Torque-Table Double-Acting Actuator (Nm)

Actuator Type	Control Pressure Pst (bar)
Actuator Type	2	2.5	3	3.5	4	4.5	5	5.5	6	7	8
AGDL - 055 AGDS - 055	117.8	147.2	176.6	206.1	235.5	265.0	294.4	323.8	353.3	412.2	471.0

Torque-Table Single-Acting Actuator (Nm)

Actuator Type	No. of Springs	Md F (Nm)		Control Pressure Pst (bar)
		Md F (Nm)		2		2.5		3		3.5		4		4.5		5		5.5		6		7
		Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max
AGS 055	4	47.90	71.70	46	70	76	99
	5	59.88	89.63	28	58	58	87	87	117
	6	71.85	107.55			40	75	69	105	99	134
	7	83.83	125.48					51	93	81	122	110	152
	8	95.80	143.40							63	110	92	140	122	169
	9	107.78	161.33									74	128	104	157	133	187
	10	119.75	179.25											86	145	115	175	145	204
	11	131.73	197.18													97	163	127	192	156	222
	12	143.70	215.10															109	180	138	210	197	268

Control Pressure

Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc. to DIN/ISO 8573-1 Class 4

Weight, Air Consumption

Actuator Type	AGDL	AGDS	AGS
Weight (kg)	8.50	8.10	9.90
Volume (I) Double-stroke	2.90	2.70	1.40

Ambient Temperature

Standard	-35°C to +80°C
High-temp (HT)	-15°C to +140°C
Low-temp (TT)	-50°C to +70°C

Switch Time (Sec*)

AGDL	AGDS	AGS
1.5	1.3	0 - 90°	90° - 0
1.5	1.3	1.2	1.1

Materials

HousingAl-Alloy, Anodised, Outside PP-Coated
CapsAl-Alloy, PP-Coated
PistonAl-Alloy
PinionAl-Alloy, Hard Anodized
Namur ShaftSS304
SealsNBR (Perbunan)
BearingPTFE+25% Corbon Filled
ScrewsStainless Steel 1.4301

Optional Extras

Other Housing Coatings
Pinion : Stainless Steel AISI 304 or 316
180° Actuator : Rotation 180° to 120° Adjustable
3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°

*Quoted switch times are guidelines for a double-stroke at 5 bar control pressure and at 50% rated loading. With high valve actuating speeds, potentially dangerous large braking forces can arise in the actuator end positions.
Tip : Throttle the exhaust air or select a larger actuator. Single Action actuators with 12 springs.

AGDL - 055 / 090 - V22 - H (see assembly variants)
AGDS - 055 / 090 - V22 - H (see assembly variants)
AGS - 055 / 090 - 06* - V22 - H (see assembly variants)
*The number of springs (4 up to 12 pcs.) must be matched to the control pressure beforehand
AGDL = Double acting with spring end caps
AGS = Single acting with spring
Option : AGDS = Double acting with short end caps

AGS-055
