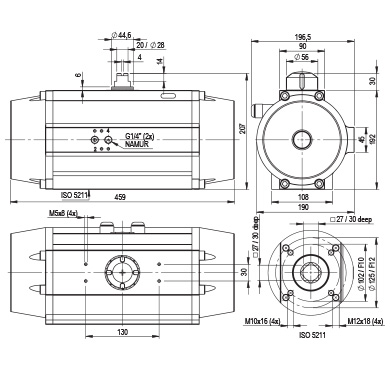

Technical Drawing

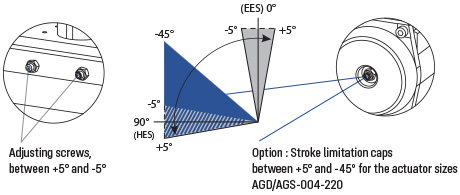

End Position Adjustment

Data Sheet (AGDL-AGDS / AGS-130)
Technical Data
Ordering Code

Torque-Table Double-Acting Actuator (Nm)

Actuator Type	Control Pressure Pst (bar)
Actuator Type	2	2.5	3	3.5	4	4.5	5	5.5	6	7	8
AGDL - 130 AGDS - 130	281.3	351.7	422.0	492.3	562.7	633.0	703.4	773.7	844.0	984.7	1125.4

Torque-Table Single-Acting Actuator (Nm)

Actuator Type	No. of Springs	Md F (Nm)		Control Pressure Pst (bar)
		Md F (Nm)		2		2.5		3		3.5		4		4.5		5		5.5		6		7
		Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max
AGS 090	4	117.70	175.50	106	164	176	234
	5	147.13	219.38	62	134	132	205	203	275
	6	176.55	263.50			88	175	159	245	229	316
	7	205.98	307.13					115	216	185	286	256	357
	8	235.40	351.00							141	257	212	327	282	398
	9	264.83	394.88									168	298	238	368	308	439
	10	294.25	438.75											194	339	265	409	335	479
	11	323.68	482.63													221	380	291	450	361	520
	12	353.10	526.50															247	421	318	491	458	632

Control Pressure

Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc. to DIN/ISO 8573-1 Class 4

Weight, Air Consumption

Actuator Type	AGDL	AGDS	AGS
Weight (kg)	15.00	14.50	19.10
Volume (I) Double-stroke	7.90	7.70	3.90

Ambient Temperature

Standard	-35°C to +80°C
High-temp (HT)	-15°C to +140°C
Low-temp (TT)	-50°C to +70°C

Switch Time (Sec*)

AGDL	AGDS	AGS
2.2	2.0	0 - 90°	90° - 0
2.2	2.0	1.5	1.4

Materials

HousingAl-Alloy, Anodised, Outside PP-Coated
CapsAl-Alloy, PP-Coated
PistonAl-Alloy
PinionAl-Alloy, Hard Anodized
Namur ShaftSS304
SealsNBR (Perbunan)
BearingPTFE+25% Corbon Filled
ScrewsStainless Steel 1.4301

Optional Extras

Other Housing Coatings
Pinion : Stainless Steel AISI 304 or 316
180° Actuator : Rotation 180° to 120° Adjustable
3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°

*Quoted switch times are guidelines for a double-stroke at 5 bar control pressure and at 50% rated loading. With high valve actuating speeds, potentially dangerous large braking forces can arise in the actuator end positions.
Tip : Throttle the exhaust air or select a larger actuator. Single Action actuators with 12 springs.

AGDL - 130 / 090 - V27 - H (see assembly variants)
AGDS - 130 / 090 - V27 - H (see assembly variants)
AGS - 130 / 090 - 06* - V27 - H (see assembly variants)
*The number of springs (4 up to 12 pcs.) must be matched to the control pressure beforehand
AGDL = Double acting with spring end caps
AGDS = Double acting with short end caps
AGS = Single acting with spring
Option : AGDS = Double acting with short end caps

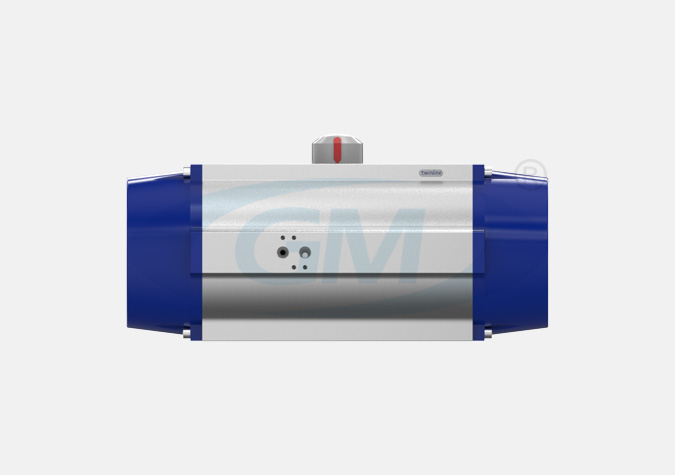

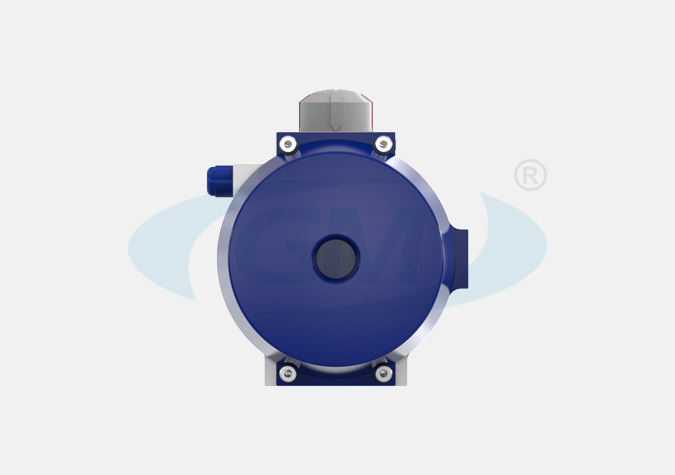

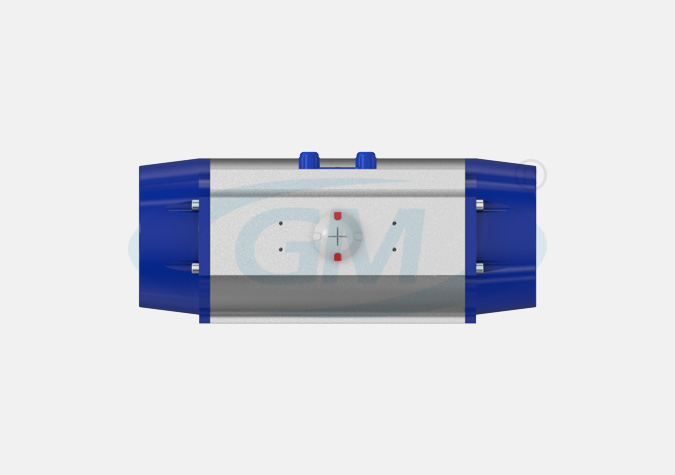

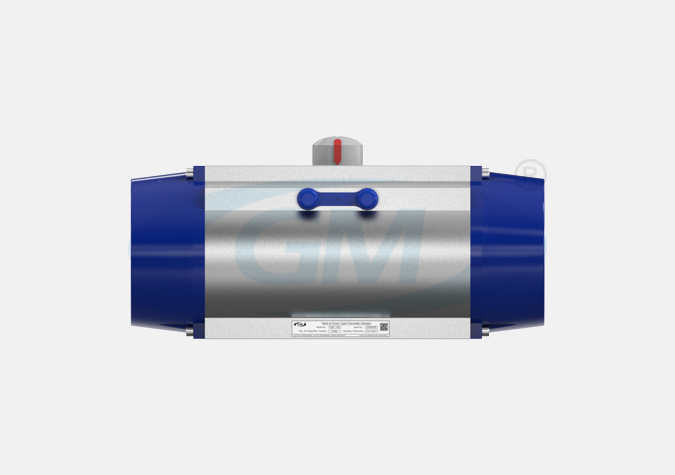

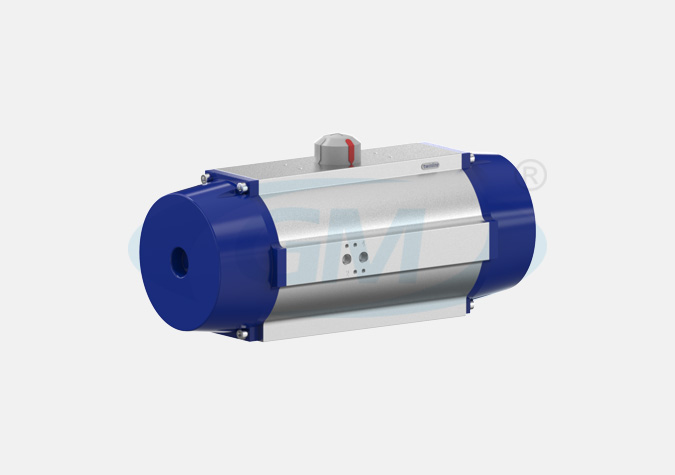

AGS-130
