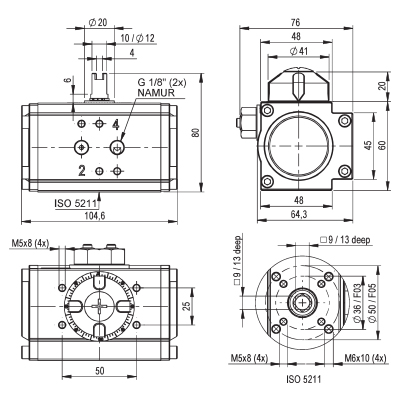

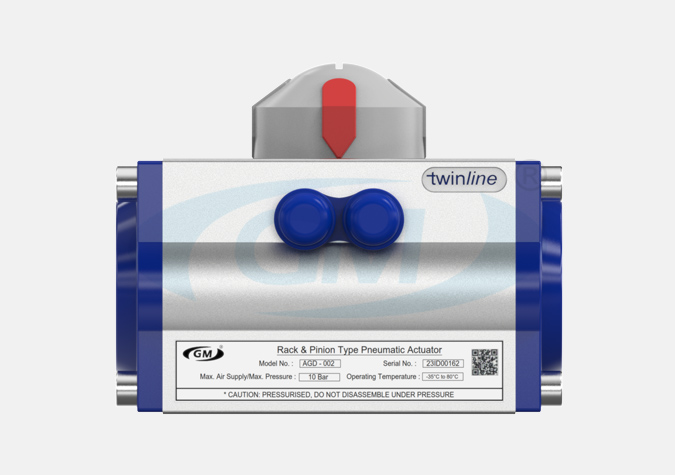

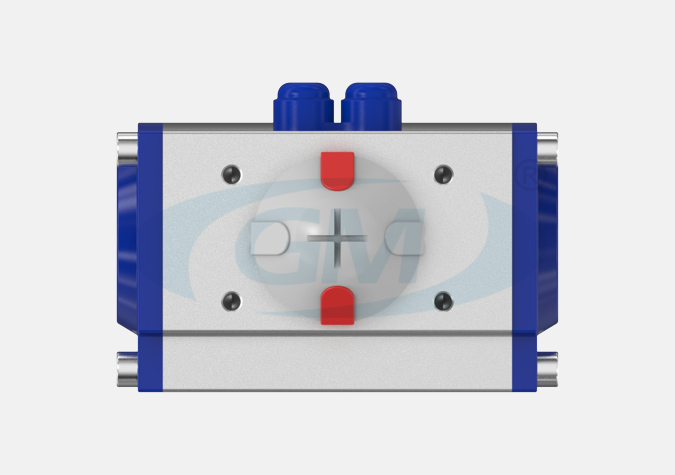

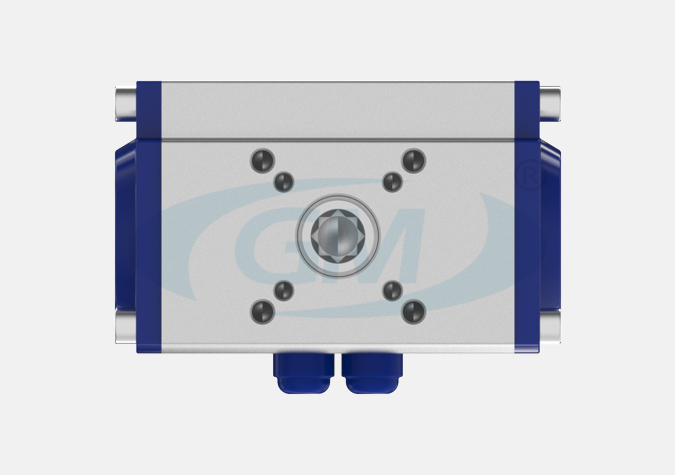

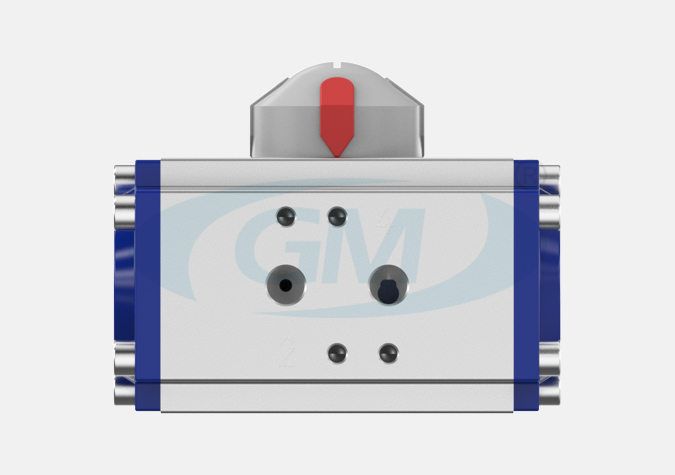

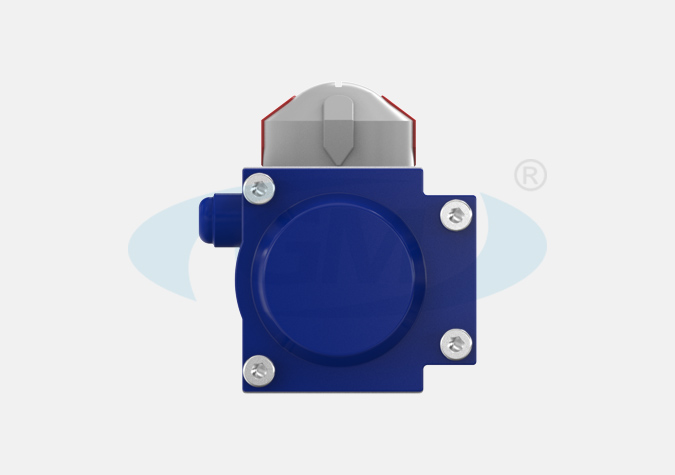

Technical Drawing

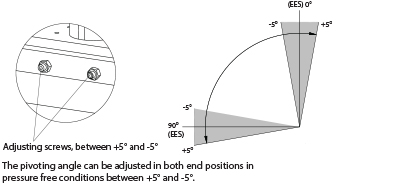

End Position Adjustment
Torque-Table Double-Acting Actuator (Nm)
| Actuator Type |
Control Pressure Pst (bar) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | |
| AGDS - 002 | 5.1 | 6.4 | 7.6 | 8.9 | 10.2 | 11.4 | 12.7 | 14.0 | 15.2 | 17.8 | 20.3 |
Control Pressure
Control pressure : 2 - 8 bar
Control medium / quality : Filtered air minimum acc.
to DIN/ISO 8573-1 Class 4
Weight, Air Consumption
| Actuator Type | AGDS |
|---|---|
| Weight (kg) | 0.7 |
| Volume (I) Double-Stroke | 0.10 |
Ambient Temperature
| Standard | -35°C to +80°C |
| High-temp (HT) | -15°C to +140°C |
| Low-temp (TT) | -50°C to +70°C |
Switch Time (Sec*)
| AGDS |
|---|
| 0.2 |
Materials
- HousingAl-Alloy, Anodised, Outside PP-Coated
- CapsAl-Alloy, PP-Coated
- PistonAl-Alloy
- PinionAl-Alloy, Hard Anodized
- Namur ShaftSS304
- SealsNBR (Perbunan)
- BearingPTFE+25% Corbon Filled
- ScrewsStainless Steel 1.4301
Optional Extras
- Other Housing Coatings
- Pinion : Stainless Steel AISI 304 or 316
- 180° Actuator : Rotation 180° to 120° Adjustable
- 3 - Position Actuator : 0° - 90° - 180° / 0° - 45° - 90°
*Quoted switch times are guidelines for a double-stroke
at 5 bar control pressure and at 50% rated loading.
With high valve actuating speeds, potentially dangerous
large braking forces can arise in the actuator end positions.
Tip : Throttle the exhaust air or select a larger actuator.
Single Action actuators with 12 springs.
AGDS - 002 / 090 - V09 - H (see assembly variants)
AGDS = Double acting with short end caps
